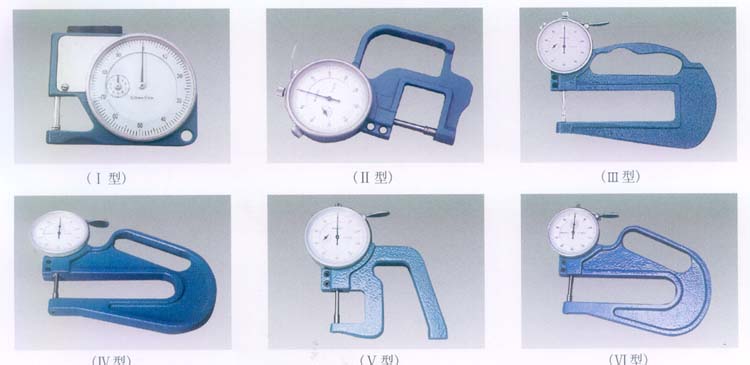

测厚规
| 型号 MODEL | 定货号 Order No | 测量范围 Measuring Range | 分度值/周值 Grsduation Value/ Dial of Per Rev. | 示值误差 Accuracy | 测量深度 Throat Depth | 测砧直径 Diameter of Measuring Inserts |
| Ⅰ | 0430.002 | 0-10mm | 0.01mm/1mm | 0.02mm | 10mm | 6mm,8mm,10mm |
| 0430.001 | 0-0.5in | 0.001in/0.1in | 0.001in | 0.5in | 0.24in,0.31in,0.4in | |
| Ⅱ | 0430.004B | 0-10mm | 0.01mm/1mm | 0.02mm | 30mm | 6mm,8mm,10mm |
| 0430.004A | 0-0.5in | 0.001in/0.1in | 0.001in | 1.18in | 0.24in,0.31in,0.4in | |
| Ⅲ | 0430.006 | 0-20mm | 0.01mm/1mm | 0.03mm | 120mm | 6mm,8mm,10mm |
| 0430.005 | 0-1in | 0.001in/0.1in | 0.0015in | 4.72in | 0.24in,0.31in,0.4in | |
| Ⅳ | 0430.010 | 0-20mm | 0.01mm/1mm | 0.03mm | 100mm | 6mm,8mm,10mm |
| 0430.009 | 0-1in | 0.001in/0.1in | 0.0015in | 4in | 0.24in,0.31in,0.4in | |
| Ⅴ | 0430.012 | 0-20mm | 0.01mm/1mm | 0.03mm | 25mm | 6mm,8mm,10mm |
| 0430.013 | 0-1in | 0.001in/0.1in | 0.0015in | 1in | 0.24in,0.31in,0.4in | |
| Ⅵ | 0.430.008 | 0-20mm | 0.01mm/1mm | 0.03mm | 30mm | 6mm,8mm,10mm |
| 0430.007 | 0-1in | 0.001in/0.1in | 0.0015in | 1.18in | 0.24in,0.31in,0.4in |
