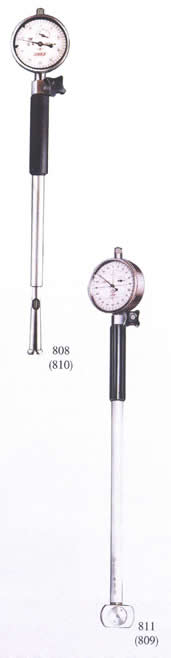

内径百分表 内径千分表 808 809 810 811/BORE MEASURING INSTRUMENTS 808 809 810 811
内径表是孔加工必备工具之一,适于测量不同直径和不同深度的孔。
The bore measuring instruments are one of the necessary tools for measuring holes.
They can be used to measure holes with different diameters and different depths.
| 编 号 Item No. | 测量范围 Measuring range | 分 度 值 Graduation value | 可测孔之深度 Depth of hole being measured | 质 量 Weight(kg) |  |
| 808-01 | 3-4mm | 0.01mm | 20mm | 0.146 | |
| -02 | 4-6mm | 30mm | 0.158 | ||
| -03 | 6-10mm | 40mm | 0.185 | ||
| -04 | 10-18mm | 130mm | 0.405 | ||
| 809-01 | 18-35mm | 135mm | 0.320 | ||
| -02 | 35-50mm | 150mm | 0.420 | ||
| -03 | 50-100mm | 200mm | 0.595 | ||
| -04 | 50-160mm | 200mm | 0.625 | ||
| -05 | 100-160mm | 300mm | 1.120 | ||
| -06 | 160-250mm | 400mm | 1.345 | ||
| 809-07 | 250-450mm | 500mm | 1.955 |
| 编 号 Item No. | 测量范围 Measuring range | 分 度 值 Graduation value | 可测孔之深度 Depth of hole being measured | 质 量 Weight(kg) |
| 810-01 | 6-10mm | 0.001mm | 40mm | 0.185 |
| 810-02 | 10-18mm | 130mm | 0.405 | |
| 811-01 | 18-35mm | 135mm | 0.320 | |
| 811-02 | 35-50mm | 150mm | 0.420 | |
| 811-03 | 50-100mm | 200mm | 0.595 | |
| 811-04 | 50-160mm | 200mm. | 0.625 | |
| 811-05 | 100-160mm | 300mm | 1.120 | |
| 811-06 | 160-250mm | 400mm | 1.345 | |
| 811-07 | 250-450mm | 500mm | 1.955 |
